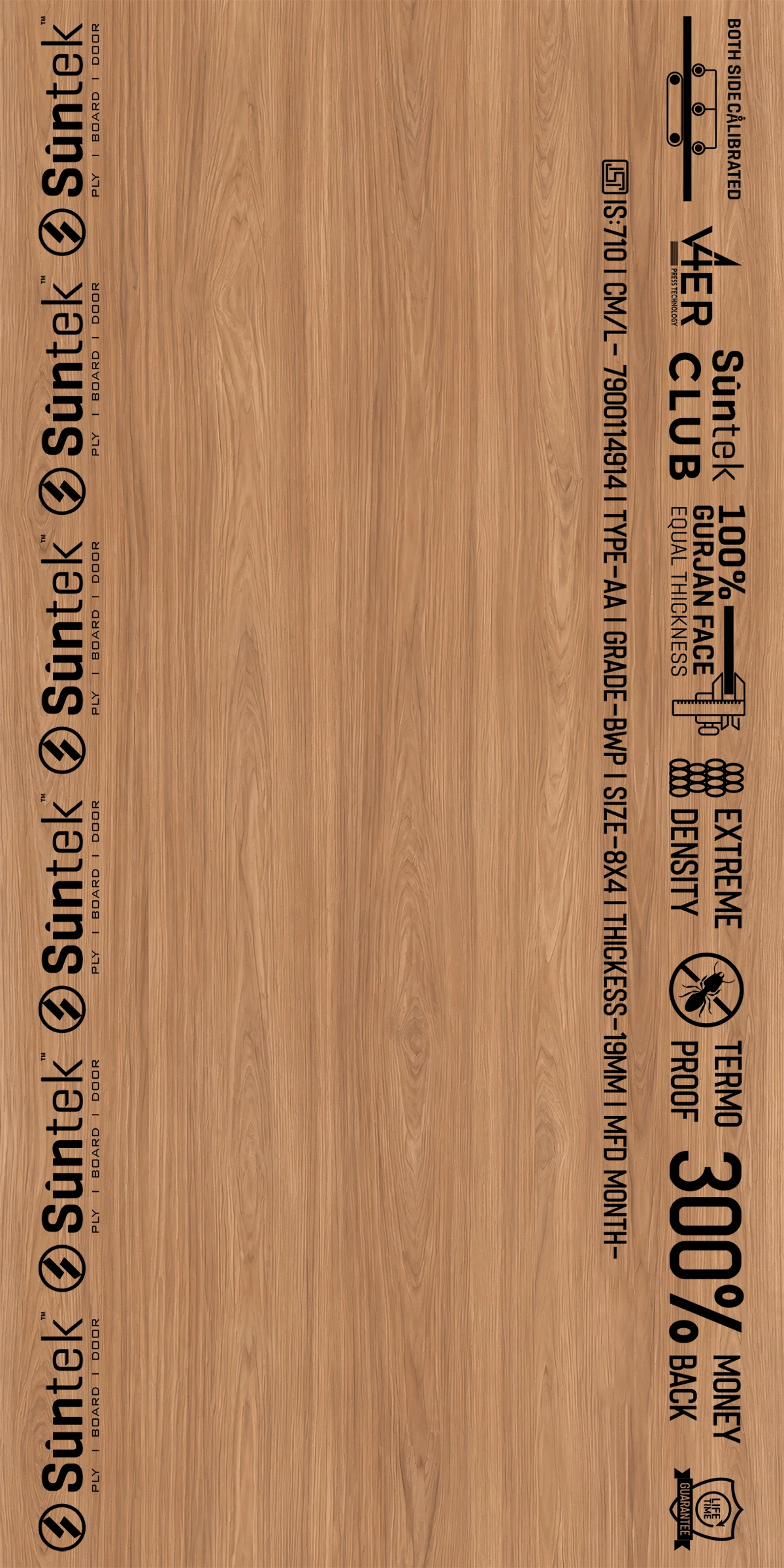

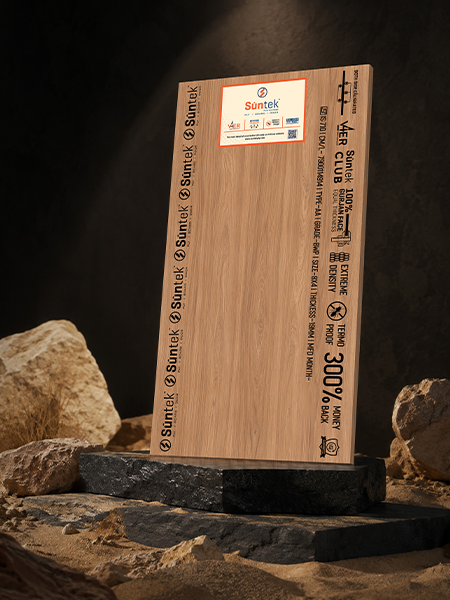

Suntek Club 710 is a 100% marine grade plywood built to IS 710 standard, backed by a lifetime warranty of 25 years. Made with hardwood species and a thick Gurjan face, it's bonded with BWP grade adhesive under high temperature and 40kg/cm² pressure for maximum strength. Pretreated with premium glue and preservative chemicals, it resists termite and borer damage while maintaining equal thickness at every corner. Passes the 72-hour boiling water resistance test for long-lasting, decade-strong performance.
| Size | 8 x 4, 7 x 4 |
|---|---|
| Thickness | 6mm, 12mm, 16mm, 18mm, 19mm, 25mm |
Product Details
Marine Grade
100% Hardwood Made
Both Side Calibrated
Pre-Composed Core
Double Surface Sanding for Superior Surface Finish
Immune to Termites
High Density of 770–825 kg/m³
Glue Line Protection and Preservative Treatment
Lifetime Warranty
Immune to Microbes
| TESTS METHOD | UNITS | REQUIREMENT AS PER INDIAN SPECIFICATIONS (IS 10701:2012) |
VALUE OBTAINED |
|---|---|---|---|
| 1) Dimensions & tolerance IS:12049-1987 (RA2001) | |||
| Length | mm | +6 / -0 | +1 / -0 |
| Width | mm | +3/ -0 | +1 / -0 |
| Thickness | % | +5%: 6mm & above | +1.5 |
| Square-ness | % | Max 0.20 | 0.08 |
| Edge straightness | % | Max 0.20 | 0.07 |
| 2) Moisture content as per IS:1734-1983 (RA 2003) Part.1 | % | 5-15 | 10-12 |
| 3) Glue adhesion in dry state | |||
| Glue shear strength as per IS:1734-1983 (RA 2003) Part4 |
N | Avg. 1,350 Min. 1,100 |
Avg. 1,650 Min. 1,485 |
| Adhesion of plies as per IS:1734-1983 (RA 2003) Part 5 | Min. Pass | Excellent | |
| 4) Resistance to water | |||
| Glue shear strength as per IS:1734-1983 (RA 2003) Part4 & 6 |
N | Avg. 1,000 Min.800 |
Avg. 1,370 Min. 1,285 |
| Adhesion of plies as per IS:1734-1983 (RA 2003) Part 5 & 6 | Min. Pass | Excellent | |
| 5) Mycological test | |||
| Glue shear strength as per IS:1734-1983 (RA 2003) Part4& 7 |
N | Avg. 1,000 Min.800 |
Avg 1,340 Min. 1390 |
| Adhesion of plies as per IS:1734-1983 (RA 2003) Part 5 & 7 | Min. Pass | Excellent | |
| 6) Static bending strength as per IS:1734-1983 (RA 2003) Part 11 | |||
| A) Modulus of rupture | N/mm2 | ||
| a) Along the grain | |||
| i) Average | Min. 50 | 69.7 | |
| ii) Min. Ind. | Min. 45 | 61.8 | |
| b) Across the grain | N/mm2 | ||
| i) Average | Min. 30 | 56.1 | |
| ii) Min. Ind. | Min. 27 | 53.7 | |
| B) Modulus of elasticity | |||
| a) Along the grain | N/mm2 | ||
| i) Average | Min. 7500 | 9450 | |
| ii) Min. Ind. | Min. 6700 | 8240 | |
| b) Across the grain | N/mm2 | ||
| i) Average | Min. 4000 | 6500 | |
| ii) Min. Ind. | Min. 3600 | 5760 | |
| 7) Wet bending strength as per IS:1734-1983 (RA 2003) Part 11 | |||
| A) Modulus of rupture | |||
| a) Along the grain | N/mm2 | ||
| i) Average | Min. 25 | 39.6 | |
| ii) Min. Ind. | Min. 22 | 34.0 | |
| b) Across the grain | N/mm2 | ||
| i) Average | Min. 15 | 37.9 | |
| ii) Min. Ind. | Min. 13 | 35.6 | |
| B) Modulus of elasticity | |||
| a) Along the grain | N/mm2 | ||
| i) Average | Min. 3750 | 5,730 | |
| ii) Min. Ind. | Min. 3400 | 4,966 | |
| b) Across the grain | N/mm2 | ||
| i) Average | Min. 2000 | 4,512 | |
| ii) Min. Ind. | Min. 1800 | 3,970 | |
| 8) Tensile Strength as per IS:1734-1983 (RA 2003) Part 9 | N/mm2 | ||
| a) Along the grain | 55 | 77 | |
| b) Across the grain | 35 | 45 | |
| 9) Compressive strength as per IS:1734-1983 (RA 2003) Part 10 | N/mm2 | ||
| a) Along the grain | 35 | 47.5 | |
| b) Across the grain | 30 | 39.8 | |
| 10) Panel shear strength as per IS:1734-1983 (RA 2003) Part 13 | N/mm2 | 12.5 | 14.66 |
| 11) Modulus of rigidity | N/mm2 | 588 | 607 |
| 12) Rolling shear strength as per IS:1734-1983 (RA 2003) Part 14 | N/mm2 | 3 | 3.87 |
| 13) Retention of preservatives as per IS 2753 (Part 1) and IS 2753 (Part2) | Kg/m3 | 12 | 15.7 |
Kitchen
Wardrobes
TV Unit
Reception Area
Wall Bracing
Shipping Crates
Outdoor Flooring
Roof Lining
Garden Furniture
Structural Home Building
Subfloors
Roof Bracing
